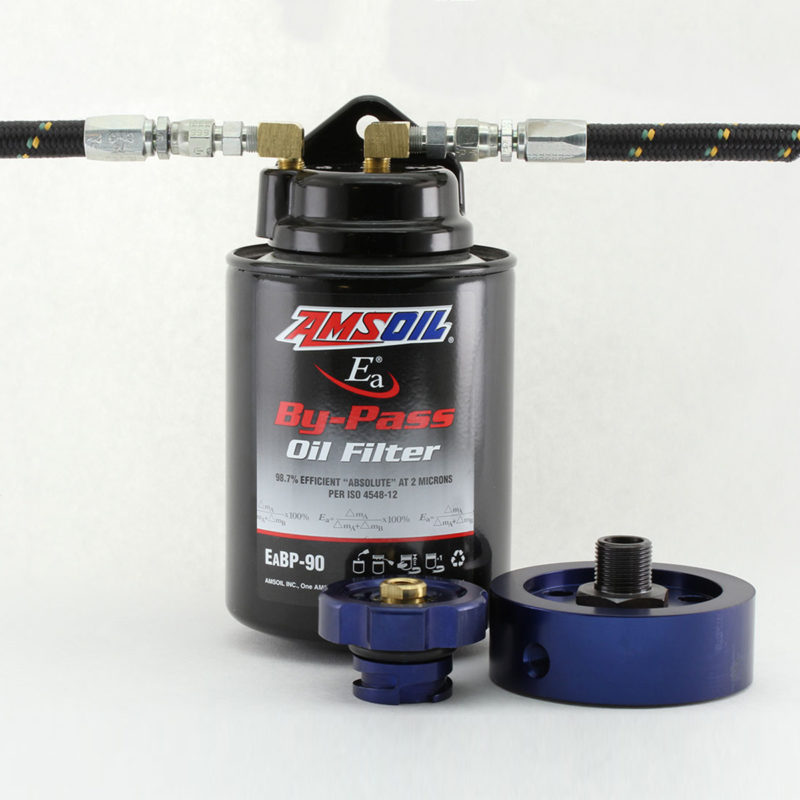

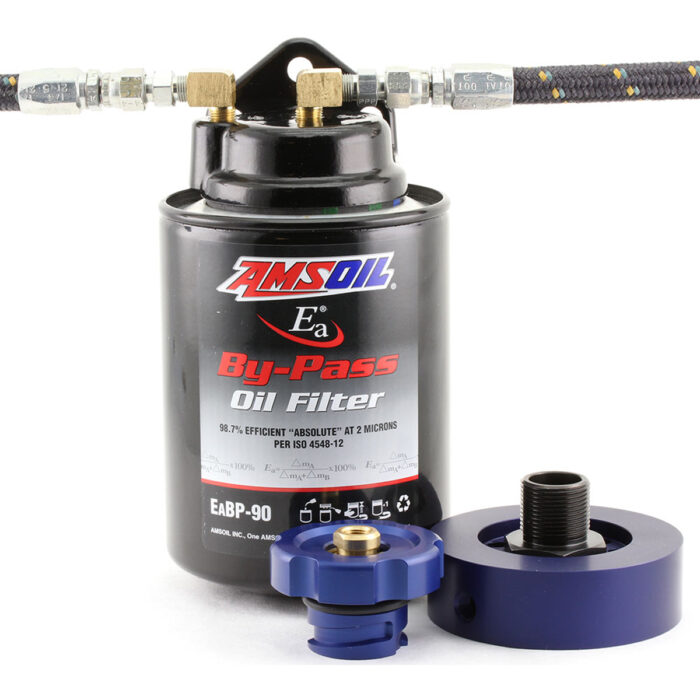

AMSOIL Single-Remote Bypass Oil Filtration System for Ford 6.7L Diesel Engines

The Ford 6.7L Single-Remote Bypass System (BMK33) is designed for 2011-present Ford* Super Duty* 6.7L Diesel Pickups. It includes all components necessary for installation (including parts, hose, Ea Bypass Oil Filter and installation instructions), providing increased convenience and value. This system connects to the engine through a full-flow filter adapter and oil fill port. System includes mount, mounting hardware, EaBP90, hose and hose fittings. Note: Full-flow filter not included with this system. Engineered for outstanding oil filtration efficiency, AMSOIL EaBP Bypass Filters have an absolute efficiency (Beta 75) at TWO microns and 60% efficiency at submicron levels. As a result, it is also an SMD (soot removal device). This system provides the best possible filtration protection against wear, oil degradation, rust and corrosion for Ford 6.7L diesel engines. The AMSOIL Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil. It is like changing your oil approximately every 10 to 15 minutes! This system will also increase oil sump capacity by approximately one quart.

The BMK28 Dual-Remote Bypass Filtration System is also available for this application.

Buy Now

SKU: BMK33
Description

Ford 6.7L Single-Remote Bypass Filtration System

PDF5 Warranty

BMK33 Installation and Servicing Instructions

See Bypass Installation Samples

The Ford 6.7L Single-Remote Bypass System (BMK33) is designed for 2011-present Ford* Super Duty* 6.7L Diesel Pickups. It includes all components necessary for installation (including parts, hose, Ea Bypass Oil Filter and installation instructions), providing increased convenience and value.

The Ea Bypass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s full-flow oil filter, the AMSOIL Ea Bypass Filter operates by filtering oil on a “partial-flow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can’t remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.

Higher Efficiency
AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes; around 20 minutes for larger crankcases.

Superior Construction
The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.

Longer Lasting
AMSOIL Bypass Filters can be utilized over an extended period of mileage, hours or years as outlined in the Chart below. Oil analysis is recommended for extended drain intervals.

Increased Oil Capacity
The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased, providing extended engine life.

Soot Removal
AMSOIL has designed a high-efficiency bypass filter element that is also a soot removal device. AMSOIL Ea Bypass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. These filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.

Bypass Filtration Benefits

  • Dramatically Extended Drain Intervals
  • Improved Oil Cooling
  • Increased Filtration Capacity and Life
  • Increased Fluid System Capacity
  • Efficient Small Particle and Soot Removal
  • Significantly Extended Engine Life
  • Equipment Constantly Runs on Clean Oil
  • Increased Engine Efficiency
  • Remove Particles Less Than One Micro

Filter Service Intervals
Ea Bypass Filters offer long service life. Do not exceed the limits listed in the chart below.

EaBP90 EaBP100 EaBP110
Mileage 60,000 70,000 80,000
Hours 600 800 1,200
Time 2 years 2 years 2 years
